Metal Coils & Sheets for Metal Roofing & Wall Systems

Coil & Sheet Products | COOLR® Metal Roofing

Sheffield Metals is a leading distributor of coated and bare metal coils and sheets to the architectural roofing market. Our metal products are produced from full-prime Galvalume®, acrylic-coated Galvalume and aluminum purchased from U.S. domestic mills. We’re always striving to provide the best customer service in the industry, which is why we proudly ship most orders within three days from one of our strategically located manufacturing facilities that have full-slitting and cut-to-length abilities across the country.

COOLR® is a family of sustainable, energy-efficient roofing products that meet ENERGY STAR® and LEED V4.1 compliance in many of the paint finishes. COOLR products come in a wide variety of colors, gauges, widths, and substrates for low and steep slope applications.

We stock over 50 colors that are painted with Sherwin Williams’s Fluropon, a high-performance Kynar 500® / Hylar 5000® PVDF resin-based coating that allows us to meet most ASTM physical property performance requirements. We also offer custom color matching to accommodate any architect, property owner, or corporate color palette with their design.

Best of all, we don’t require a minimum for orders in our standard colors. Plus, most of our coils and sheets are processed after an order is submitted, which allows us to custom slit and package your metal based on your project needs.

Sheffield Metals Products & Services: Metal Roofing Coils & Sheets


Contact us

Contact Sheffield Metals today to learn more about our products and services, and how we can create a customized solution for you.

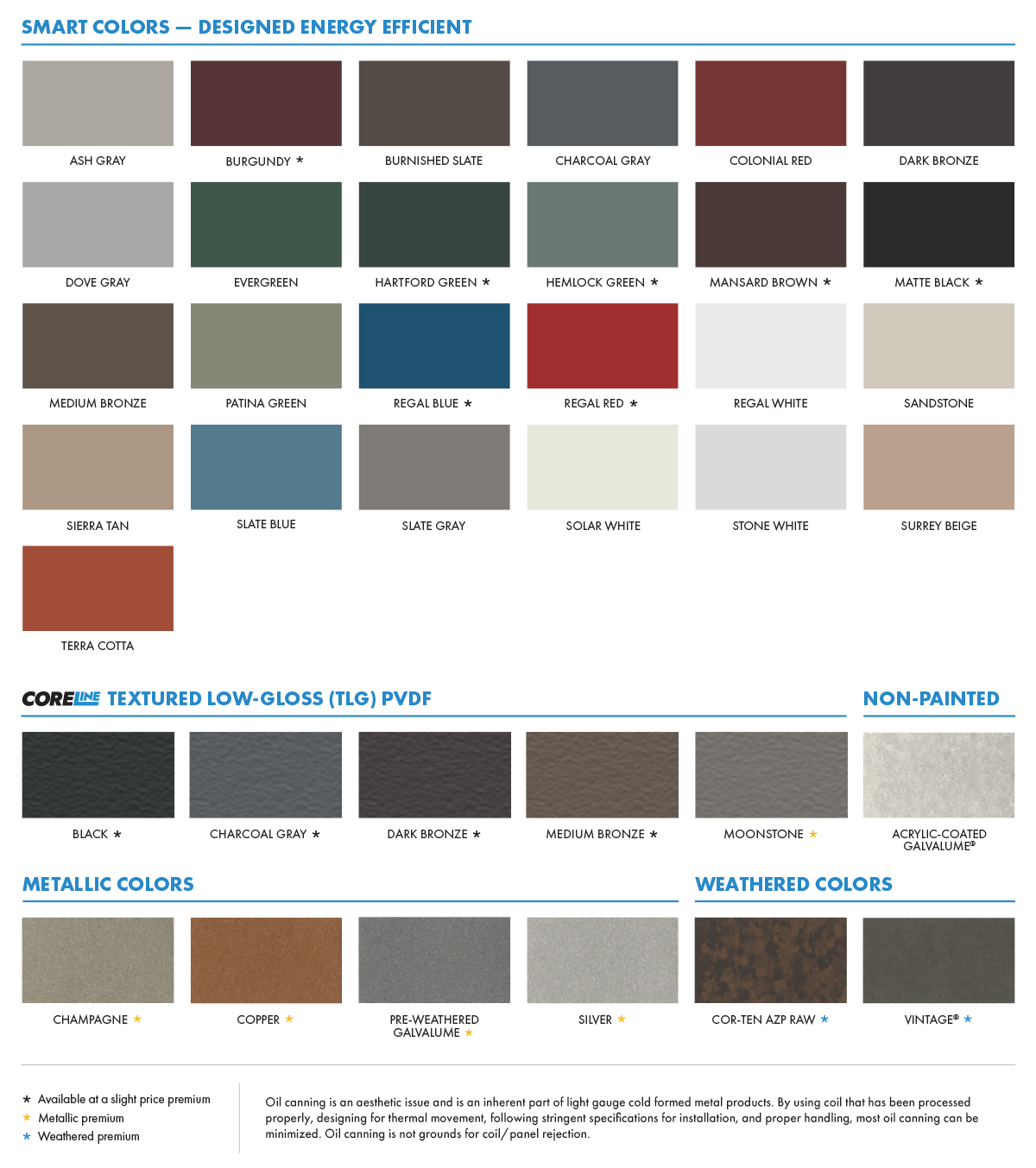

Sheffield Metals Standard Colors

24-GAUGE COLORS


26-GAUGE COLORS



Specialty Coil & Sheet Products

ELZINC® COIL & SHEET PRODUCTS

elZinc®

Specialty Coils & Sheets: elZinc
Advantages:
  • Aesthetic, elegant material.
  • Durable 50 to 100+ years lifespan with adequate design and installation in healthy environments.
  • Natural, high-value recyclable material.
  • Low energy required for production.
  • Low-maintenance material.
  • Clear run-off.

Manufacturing Capabilities:
  • 0.65 mm (26-gauge)
  • 0.7 mm (24-gauge)
  • 0.8 mm (22-gauge)
  • 1.0 mm (20-gauge)
  • 1.2 mm (18-gauge)
  • 1.5 mm (16-gauge)

Colors shown are matched as accurately as possible, but may vary slightly from finished product. Please contact your representative for more information.


Downloads:

COPPER COIL & SHEET PRODUCTS

Copper Coil & Sheet

Specialty Coils & Sheets: Copper

Sheffield Metals stocks a wide range of copper coil and sheet products.

Call your local SMI representative for more information regarding our copper products!

WEATHERED METAL SERIES™

Weathered Metal Series™ — Metal Roofing Finishes

Specialty Coils & Sheets: Weathered Series Finishes

The Weathered Metal Series features three distinct PVDF-formulated finishes (coated steel), including:

  • Galv-TenTM Raw
  • Copper-TenTM Raw
  • Cor-Ten AZP® Raw

Please contact your representative for more information!


Weathered Metal Series (COR-TEN AZP® Raw, Galv-Ten Raw, and Copper-TenRaw) are all registered trademarks of United States Steel Corporation.

Colors shown are matched as accurately as possible but may vary slightly from the finished product. These rich and vibrant colors are produced with either Kynar 500® or Hylar 5000® resins, which provide superior color retention and allow Sheffield Metals to offer non-prorated coating warranties for most applications.

Also available in Robust.

WEATHERXL™ SMP

WeatherXL Siliconized Modified Polyester (SMP)

Specialty Coils & Sheets: Weather XL SMP
WeatherXL Benefits:
  • Innovative reformulation makes it easier to apply and even more weather resistant.
  • Stronger color retention with the best resistance yet to chalking and fading.
  • Enhanced scratch resistance.
  • A range of other improvements, including improved line application, faster line speeds, quicker curing and less edge blistering (depending on application conditions).

Typical Uses for SMP:
  • Metal roofing
  • Panels
  • Architectural trim
  • Roof flashings
  • Other architectural applications

Availability:

Available in 40- and 48-inch coils and sheets.

Contact your local Sheffield Metals representative for more information on SMP finishes!


Downloads:

VINTAGE®

Vintage®

Specialty Coils & Sheets: Vintage

Vintage® coated metal is an innovative pre-painted metal providing warmth, character, and depth without the wait, or the uncertainty of the final look, that can occur with other weathered-looking substrates.


Why Vintage®?
  • Produces a beautiful and durable finish perfect for roofing and wall panels in both exterior and interior applications.
  • Continuously stocked at all Sheffield Metals locations.
  • Carries a Steelscape Vintage 20-year finish warranty.
  • Coated on a G90 substrate only.
  • Complements our “Weathered” line of painted finishes.

Contact your local Sheffield Metals Representative for more information on Vintage!


Downloads:
